Product Information
MFT Plateanker
Elforsinket for enkel gipsplate
asdfasdf
| Product number | GTIN-no | Product name | Dimensions | Dimensions (D x L) | Dimensions (D x max attachment/L) | Total lenght | Length | Max attachment | Screw dimensions | For screw dimension | Screw length | Body diametre | Thread dimensions | Min screw length | Anchor length | Drill dimension | Drilling depth | Groove type | Screw head | Collar | Sleeve thickness | Internal loop | Max extraction (wood) | Max extraction (plaster fixing) | Max extraction ceiling (plaster 1 x 13mm) | Max extraction ceiling (plaster 2 x 13mm) | Max extraction (Leca) | Max extraction (concrete) | Max extraction (concrete B20 / 25) | Max extraction (brick/tile) | Max extraction (hole brick) | Max shear (wood) | Max shear (plaster fixing) | Max cut wall (plaster 1 x 13 mm) | Max cut wall (plaster 2 x 13 mm) | Max shear (concrete) | Max cut (concrete) | Max shear (brick/tiles) | For plate thickness | Colour | Material | Coating | Load | Pcs / Pkt |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 241014 | 7034352410142 | BOARD ANCHOR ZP EDGE 4SV M4X38E A3 | M4 x 38 mm | M4 | 38 mm | 5 - 13 mm | Stål | Elektrolytisk forsinket | Lett / middels | 3 | ||||||||||||||||||||||||||||||||||
| 241018 | 7034352410180 | BOARD ANCHOR ZP M6X58 E A4 | M8 x 58 mm | M8 | 58 mm | 52 mm | Ø13 mm | Kombi (Spor / PH) | Pan | 17,5 mm | 10,5 mm | 0,4 kN | 0,5 kN | 3 - 16 mm | Stål | Elektrolytisk forsinket | Lett / middels | 4 |
Features
MFT Plateanker, elforsinket for enkel gipsplate. Kraftig spesialfeste for div feste i gips. Stort bruksområde. Tang anbefales for rask montering. MFT Plateanker er markedets kraftigste festemiddel for gips med høyeste uttrekksverdier.
More information

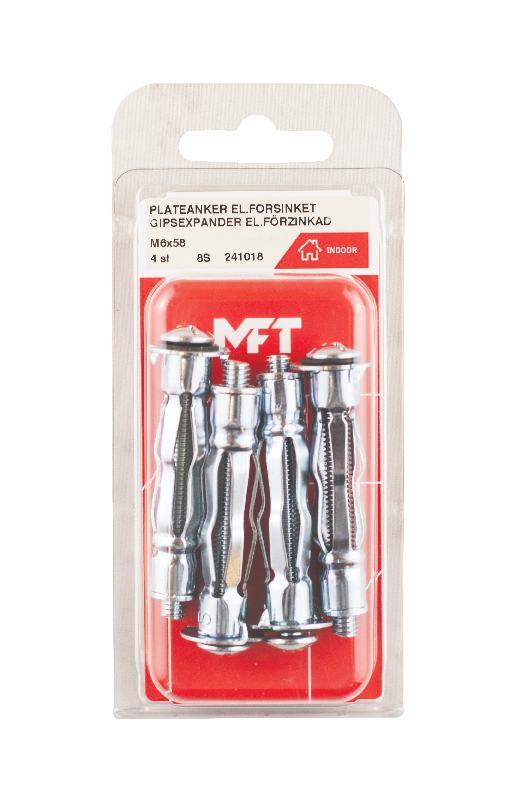

MFT Plateanker elforsinket. Leveres i småpakk 4 st/pk
MFT Plateanker elforsinket brukes til div. tyngre oppheng opptil 40 kg i enkel gipsplate/plater i tykkelse 3-16mm. For innendørs bruk. Må formonteres. Belastning - Lett/middels
| Dimensjon | Bordimensjon | Krave D |
|---|---|---|
| M4 | Ø8 | 13,5 |
| M6 | Ø11 | 16,0 |
| M8 | Ø13 | 17,5 |
